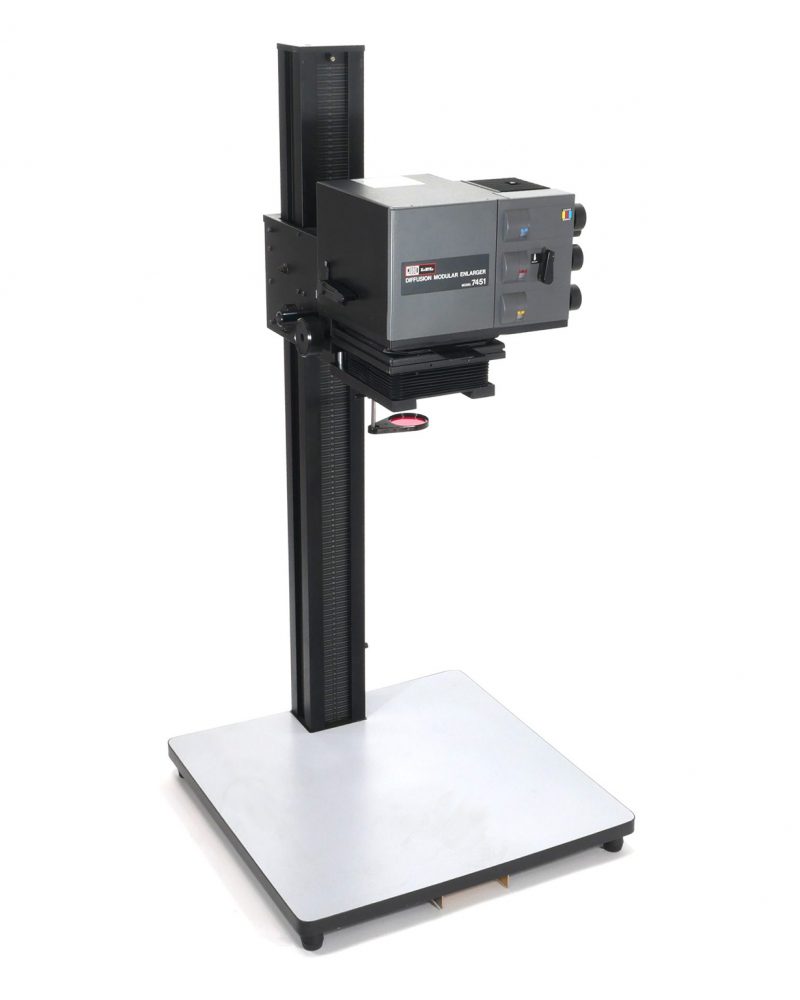

LPL 7452

The 7452L is the most recent addition to the LPL family of 4×5 enlargers. A longer column and baseboard were added to the successful 7452 model, resulting in the ultimate LPL 4×5, now capable of producing 20″x24″ prints on the baseboard from virtually all negative formats. With its uniquely versatile lamphouse system, high quality construction, and exceptional ease of use and convenience features, the LPL 7452L is the premier choice in 4×5 enlargers.

The LPL 7452L was originally distributed in the USA as the Saunders/LPL 4550XLG, and is currently marketed by OmegaSatter as the Omega/LPL 4550XLG.

分类： LPL, 全部产品

描述
用户评价 (0)

描述

描述

Features & Specifications
● Modular lamphouse accepts Colour, VCCE, and B&W filtration modules
● Fully counterbalanced elevation system
● Carriage reverses for floor projection
● Reference Scale on column
● Laminated, steel reinforced baseboard
● Rugged die-cast lens stage
● Right and left hand focus controls
● Fine Focus adjustment on right-side knob
● Reversible, rotating threaded lensboard system
● 250W Quartz-Halogen Lamp
● Stabilized Power Supply
● White Light lever for image composition and focusing (Dichroic & VCCE)
● Maximum Film Format:	4″ x 5″
● Column Height:	135cm
● Maximum Height (carriage fully extended):	149.5cm
● Baseboard Dimensions:	60 x 80cm
● Max. Magnification on baseboard – 35mm negative with 50mm lens:	21X
● Weight (approx.):	31kg

**Enlargers**
09457	7452L Enlarger with Dichroic Colour Module	C
09460	7452L Enlarger with VCCE Variable Contrast Module	C
09477	7452L Enlarger with B&W Diffusion Module	C

**Major Components**
10045	Dichroic Colour Filter Module	C
10046	VCCE Variable Contrast Filter Module	C
10047	B&W Diffusion Module	C
00400	Stabilized Power Supply 120V/82V	C

**Negative Carriers**
Glass Carrier
45100	4″x 5″ Glass Negative Carrier	C
45035	35mm Glass Negative Carrier	K
46001	Bottom Glass for 4″x 5″ Glass Carrier (replacement)	C
46003	Anti-Newton Top Glass for 4″x 5″ Glass Carrier (replacement)	C

Glassless Carriers
45135	35mm Glassless Negative Carrier (standard 24x36mm)	C
45335	35mm Glassless Negative Carrier (oversize 26x38mm)	K
45222	35mm Mounted Slide Glassless Carrier	C
45235	Xpan Format (24x65mm) Glassless Negative Carrier	K
45645	6×4.5cm Glassless Negative Carrier	C
45666	6x6cm Glassless Negative Carrier	C
45677	6x7cm Glassless Negative Carrier	C
45699	6x9cm Glassless Negative Carrier	C
45450	4″x 5″ Glassless Negative Carrier	C

**Lens Mounts**
00325	25mm Threaded Reversible Lensboard	K
00332	32.5mm Threaded Reversible Lensboard	K
00300	39mm “Leica” Threaded Reversible Lensboard	C
00339	39mm “Fine” Threaded Reversible Lensboard	K
00342	42mm Threaded Reversible Lensboard	K
00350	50mm Threaded Reversible Lensboard	K
00353	53mm Threaded Reversible Lensboard	K
00355	55mm Threaded Reversible Lensboard	K

Accessories

55545

4″x 5″ Diffusion Box (replacement)C555676x7cm Diffusion BoxD5553535mm Diffusion BoxD40500Negative Masking AttachmentC40210Wall Mounting KitK40220Flexible Focus ExtensionC01139Lens Extension Tube for 1:1 and reductions (for 39mmm lensboard)C00672Red Filter Assembly (replacement)C26225Replacement Red Filter onlyC

**Lamps**
00160	250W/82V Quartz Halogen Lamp for 7452 with 82V power supply	C
68476	250W/24V Quartz Halogen Lamp for 7452 with 24V power supply	C
