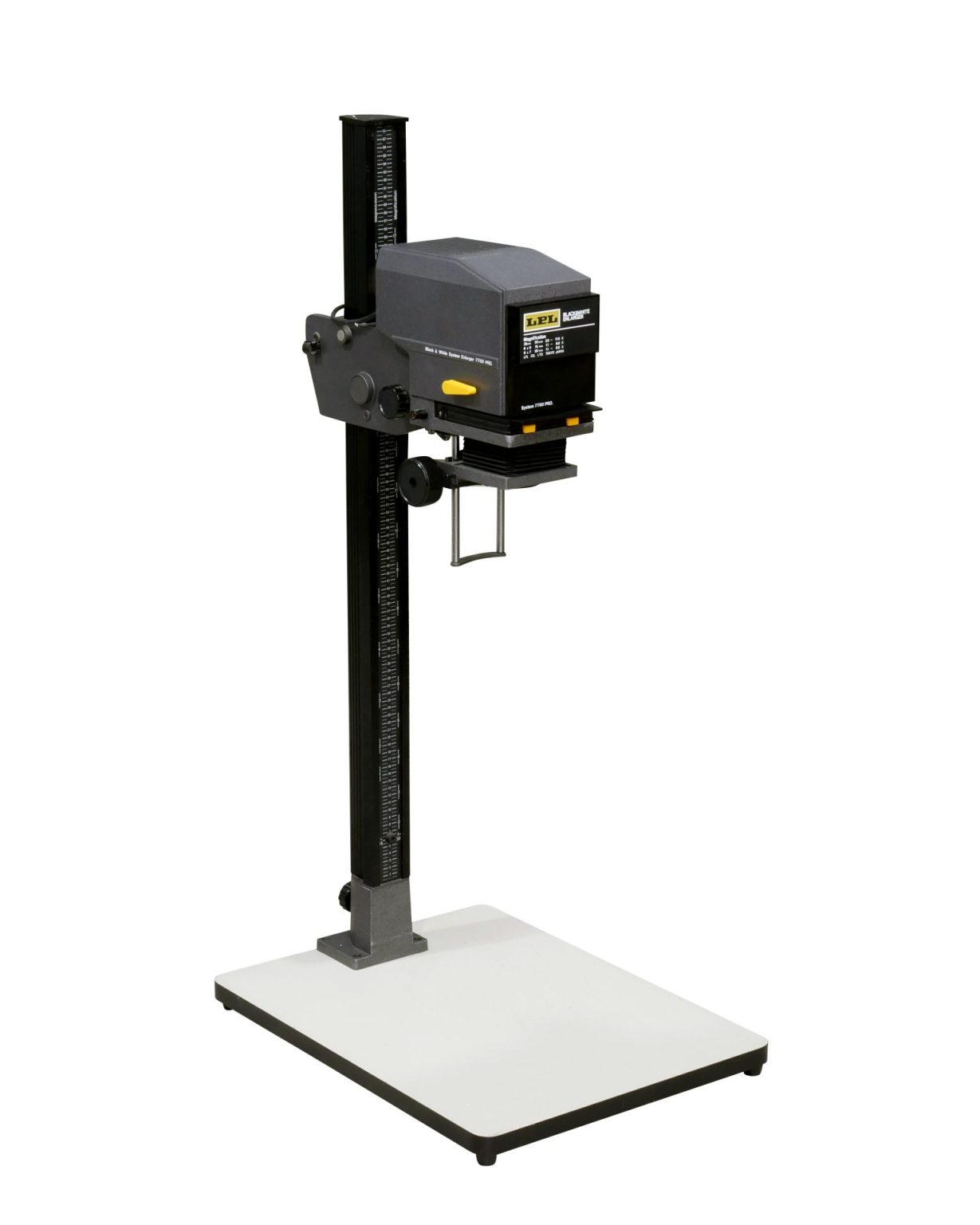

LPL 7700

The LPL 7700 series provides full-featured, professional quality enlargers that handle film formats up to 6x7cm. With a choice of three different light sources, you can choose the model best suited for the type of printing you do.  The Dichroic colour lamphouse is perfect for all colour printing requirements and can be used for black & white as well. The VCCE lamphouse is the ideal choice for printing B&W on variable contrast paper. And the 7700 Condenser is the choice of those who prefer the extra “snap” of a condenser enlarger.

分类: ,

描述

Features & Specifications

Colour

           VCCE             Cond.
XL column for 16″x20″ prints on the baseboard

                ●               ●
Fully counterbalanced twist-to-lock elevation control

 ●

              ●
Column reverses for floor projection                ●                 ●               ●
Magnification Reference Scale on column                ●                 ●               ●
Oversize laminated baseboard

                ●               ●
Rugged die-cast carriage                ●                 ●               ●
Carriage tilts for wall projection                ●                 ●               ●
Lens stage tilts and shifts for distortion control

                ●               ●
Right and left hand focus controls

                ●               ●
Extra long bellows                ●                ●               ●
Metal reversible, rotating 39mm threaded lensboard included                ●                ●               ●
100W 12V Quartz-Halogen Lamp                ●                ●
75W 120V Opal Enlarging Lamp                    ●
Heavy-duty Power Supply                 ●               ●
White light lever for easy focusing                ●               ●
Lamphouse Filter Drawer for colour or variable contrast filters                   ●
Maximum Film Format: 6x7cm
Column Height:  43″ (110cm)
Maximum Height  (carriage fully extended): 49″ (125cm)
Baseboard Dimensions: 18″x23″ (45x60cm)
Max. Magnification on baseboard – 35mm neg with 50mm lens: 17.6X
Max. Magnification on baseboard – 6x6cm neg with 75mm lens: 8.6X
Weight (approx.): 16kg 16kg 15kg

Enlargers

 00670 7700MX Dichroic Colour Enlarger  with power supply C
 00667 7700 VCCE Variable Contrast Enlarger with power supply C
 00671 7700 Triple Condenser Enlarger   C


Major Components

00165 7700 Dichroic Colour Lamphouse without power supply C
00167 7700 VCCE Variable Contrast Lamphouse without power supply C
00166 7700 Triple Condenser Lamphouse C
00379-1 Power Supply for Dichroic and VCCE Lamphouse – 120V C
00379-2 Power Supply for Dichroic and VCCE Lamphouse – 220V C


Negative Carriers

Glass Carrier
00100 Universal Glass Carrier with Adjustable Masking C
00105 Minox Format Glassless Insert for Universal Glass Carrier K
00110 110 Format Glassless Insert for Universal Glass Carrier DL
00126 126 Format Glassless Insert for Universal Glass Carrier DL
00118 1/2 Frame 35mm Glassless Insert for Universal Glass Carrier D
00135 35mm Glassless Insert for Universal Glass Carrier C
00222 Mounted Slide Insert for Universal Glass Carrier DL
00444 4x4cm Glassless Insert for Universal Glass Carrier D
00275 Plain Glass for Universal Glass Carrier  (replacement) C
00250 Anti-Newton Top Glass for Universal Glass Carrier  (optional) C

Glassless Carriers
20100 Disc Format Glassless Negative Carrier D
20110 110 Format Glassless Negative Carrier DL
20126 126 Format Glassless Negative Carrier D
20118 1/2 Frame 35mm Glassless Negative Carrier D
20135 35mm Glassless Negative Carrier C
20335 “Full Frame” 35mm Glassless Negative Carrier K
20222 35mm Mounted Slide Glassless Carrier DL
20235 Xpan Format Glassless Negative Carrier K
20444 4x4cm Glassless Negative Carrier D
20645

6×4.5cm Glassless Negative Carrier

C

20666

6x6cm Glassless Negative Carrier

C
20677 6x7cm Glassless Negative Carrier C


Lens Mounts

00325 25mm Threaded Reversible Lensboard K
00332 32.5mm Threaded Reversible Lensboard K
00300 39mm Threaded Reversible Lensboard C

Accessories

40300

Fine Focus Control

40220

Focus Extension  (requires Fine Focus Control)

40320

Copy Camera Attachment for 7700 Enlargers

00690MX-1 Copy Camera/Slide Duplicator Kit  (for 7700MX Dichroic only)00298Enlarger Dust CoverD 00150Film Hanger Kit00672Red Filter Assembly  (replacement)26225Replacement Red Filter only

Lamps

00139 PH140 75W 120V Opal lamp for 7700 Condenser Enlarger

C

00239 PH1400 75W 230V Opal lamp for 7700 Condenser Enlarger

C

00140 100W/12V Quartz Halogen Lamp for 7700 Dichroic and VCCE

C

28101 Panel Lamp for 7700 Dichroic and VCCE Lamphouse

C
